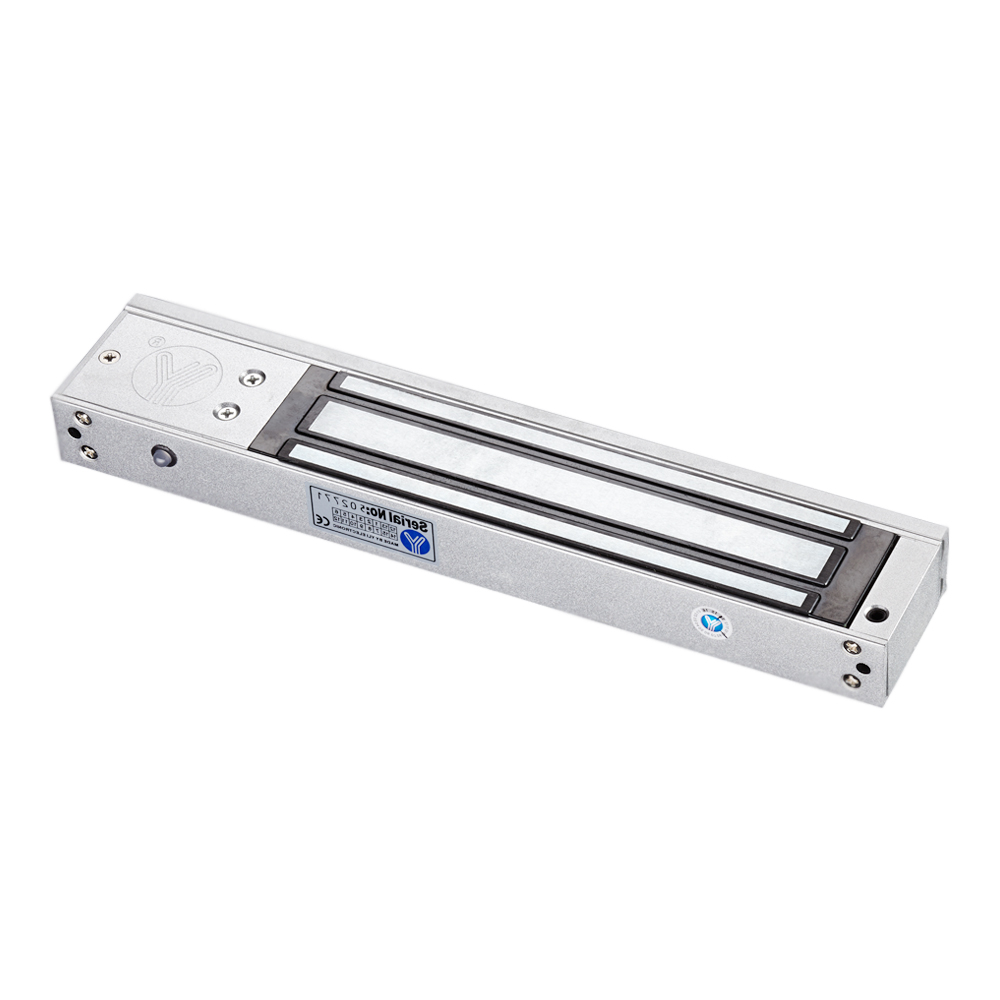

| Product Parameter |
Parameter Description |
| Size |
520Lx57.7Wx29.6H(mm) |
| Armature Plate Dimension |
长190x宽45x厚11(mm) |
| Holding Force |
350kg(800Lbs) *2 |
| Input Voltage |
12 or 24VDC |
| Current |
12V/500mA *2 or 24V/250mA *2 |
| LED |
Red shows locked ;Green shows unlocked |
| Signal Output |
Lock signal(NO/NC/COM) |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Weight |
5.4KG |
Collinear Load Test 350kg,800pounds * 2
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
|
| Packing Size(L*W*H)(cm) |
|
| Gross Weight(KG) |
|
