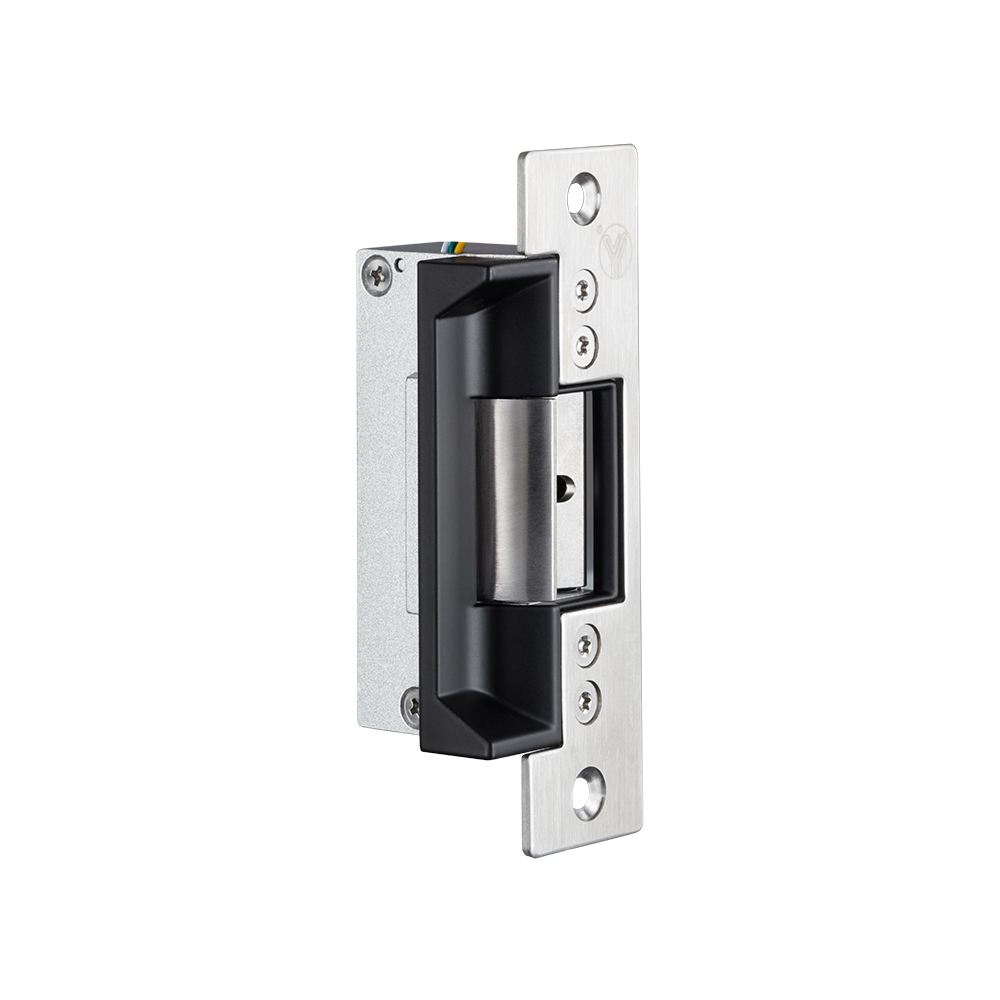

Product Parameter |
Parameter Description |
Lock Size |
123Lx43Wx42H(mm) |
Keeper |
Stainless Steel |
Static strength |
500kg |
Voltage |
DC12V (Need Order DC24V) |
Current |
12V/400mA(±10%);24V/160mA(±10%) |
Signal Output |
Lock Status Output NO/NC/COM |
Feature |
Fail Secure(YS-136NO-S); Fail Safe(YS-136NC-S) |
Suitable For |
Wooden Door,Metal Door,PVC Door |
Surface Temperature |
Within +20℃ |
Suitable Temperature |
-10~+55℃(14-131F) |
Operating Humidity |
0~95%(non-condensing) |
Face plate Housing |
Painted Steel |
Lock tongue |
Surface by coating nickel |
Function |
Built-out MOV |
Optional Accessories |
YS-305 YS-306 |
Weight |
0.34kg |
Certification |
CE-EMC CE-LVD FCC RoHS REACH WEEE |
Holding 500kg
Designed for Metal Frame drill a hole,then install it directly
Testing to 100000 cycles
High-Temperature Painted,Durable and Beautiful Artical
CE Certificate by European Union, MACertificate by China Public Security office
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing Quantity(PCS/CTN) |
60 |
Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
Gross Weight(KG) |
23.4 |
