| Product Parameter |
Parameter Description |
| Dimensions |
L90xW90xH128(mm) |
| Holding Force |
180kg(350Lbs) |
| Voltage |
Factory Default：24VDC，12VDC(Adjustment) |
| Current Draw |
12V/240mA 24V/120mA |
| Signal Output |
NO（Green）/NC（Yellow）/COM(White) YD-606L-S |
| Optional |
The Hand Moves and Closes the Door to Release the Button |
| Suitable for |
All Kind of the Single & Double Smokeproof Door |
| Surface Temp |
≤+20℃ |
| Operating Temp |
-10～+55℃(14-131F) |
| Suitable Humidity |
0~90%(non-comdensing) |
| Finishes for Shell |
High Temperature Paint and Environmental Protection |
| Finishes for Armature |
Zinc |
| Weight |
1.8kg |
| Certification |
CE-EMC FCC |
Col linear Load: 50kg, 110pounds.
The Standard Voltage is 24VDC when finished.
MOV Provides Reverse Current Protection.
Low Power Consumption, Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulate Housing.

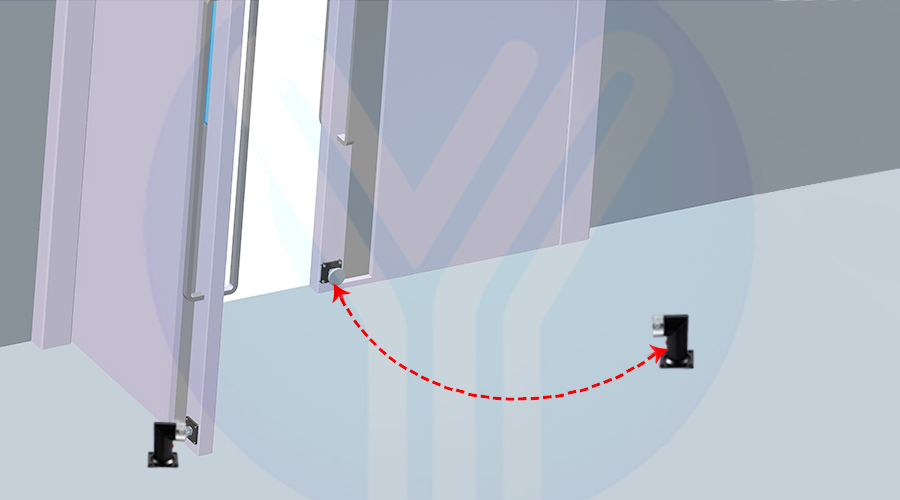

Automatically close the smoke proof door when fire happens.
Manual door release button.
CE Certificate.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
|
| Packing Size(L*W*H)(cm) |
|
| Gross Weight(KG) |
|
