| Signal output |
Lock signal(NO/COM)(YM-180M-S(SS304)) |
| Size |
196Lx35Wx20.5H(mm) |

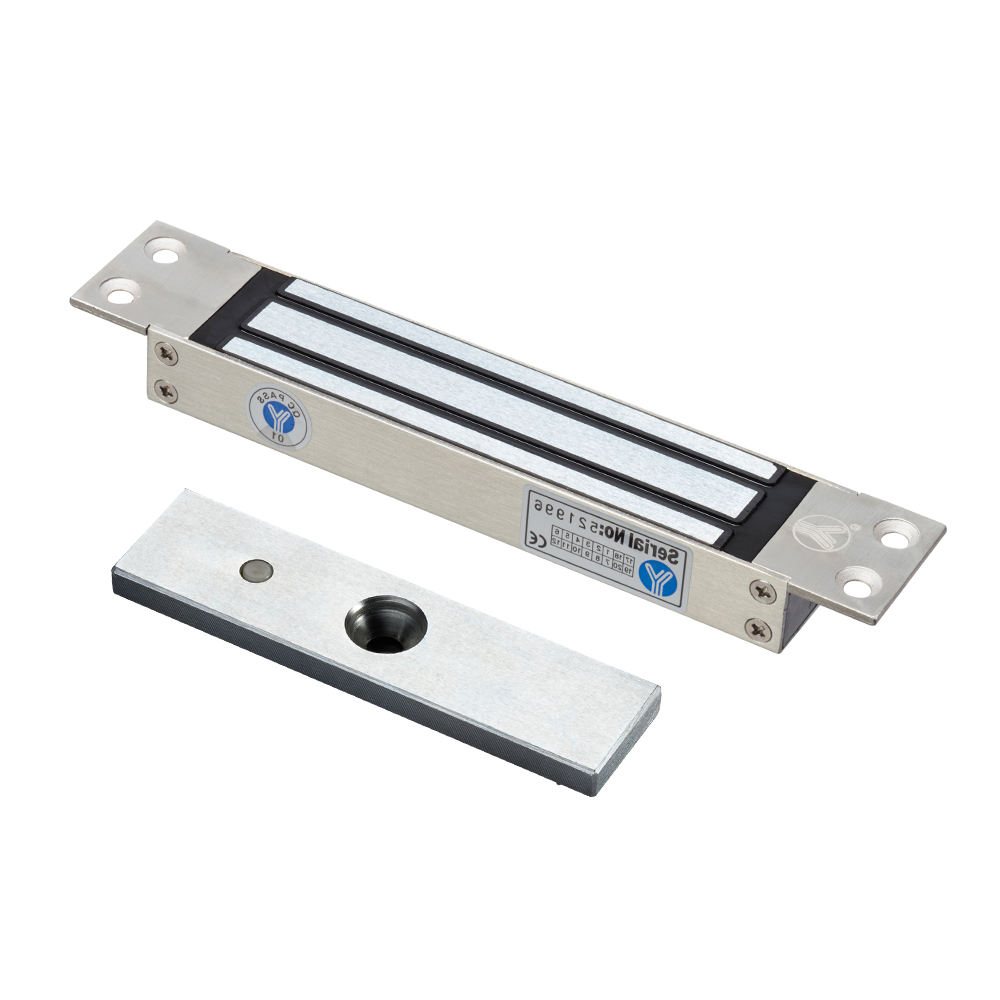

| Armature Plate Dimension |
130Lx32x10H(mm) |
| Current |
12V/400mA(±10%) ； 24V/200mA(±10%) |
| Input Voltage |
DC12V (Customizable DC24V) |
| Current |
12V/400mA(±10%)；24V/200mA(±10%) |
| Holding Force |
180kg(350Lbs)±10% direct pull (UL authorized laboratory report) |
| Operating temperature |
-30℃~+66℃ (-22~151F) (ANSI laboratory report) |
| Operating humidity |
0~95% relative humidity |
| Surface temperature |
Within 20℃ above ambient temperature |
| Salt spray test |
240-hour exposure (National laboratory report) |
| Residual magnetism test |
Demagnetization and unlocking within 0.5 seconds (ANSI laboratory report) |
| Overvoltage test |
125% overload normal operation (ANSI laboratory report) |
| Undervoltage test |
85% input voltage pull force test (ANSI laboratory) |
| Housing treatment |
Anodized hard plating (500-hour salt spray test report) |
| Lock core certification |
Encapsulation with American UL-certified fireproof resin (UL laboratory report) |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Cover finish |
Stainless Steel |
| IP rate |
IP-65 |
| Weight |
1.2kg |
| Certification |
CE-EMC CE-LVD RoSH |
Collinear Load Test 180kg,350pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
