Product Parameter |
Parameter Description |
Box Size |

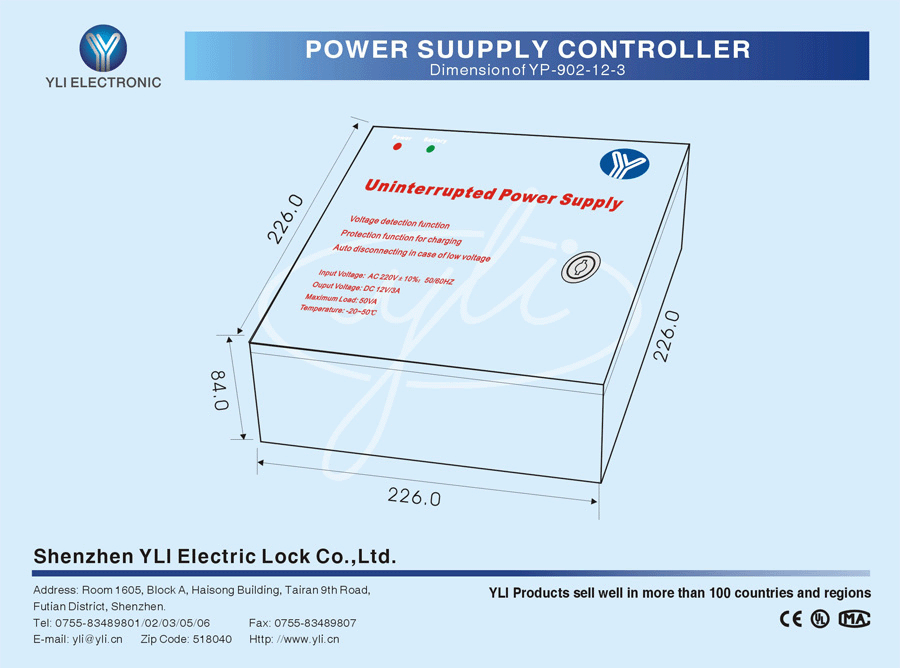

226Lx226Wx84H(mm) |
Input Voltage |
220VAC+10%;50/60HZ |
Output Voltage |
DC12V/5A |
Time Relay |
0~30sec |
Optional Accessories |
Backcup Battery,12V/7H |
Output Contact |
Access control, Electric Lock, Release Button |
Standard Design |
Steel Material, Painted |
Protect Safely |
Short Circuit protection |
Suitable For |
Access control, Electric lock |
Weight |
2.4kg |
Special Design, Suitable for Access Control.
Produced with High Quality Element.
Multifunctional Output Contact,Suitable for Multifunctional Request.

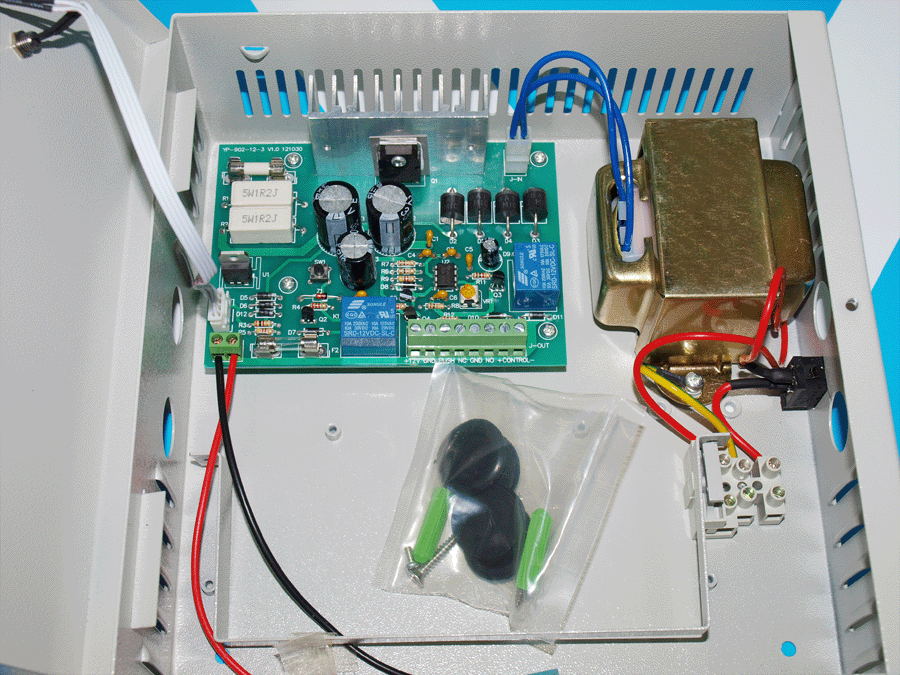

Build-in Backup Charger for Uninterruptible.
Supply Power for 7 hours uninterruptible.
The Best Choice of Access Control.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing Quantity(PCS/CTN) |
8 |
Packing Size(L*W*H)(cm) |
40*26*50 |
Gross Weight(KG) |
20.2 |
